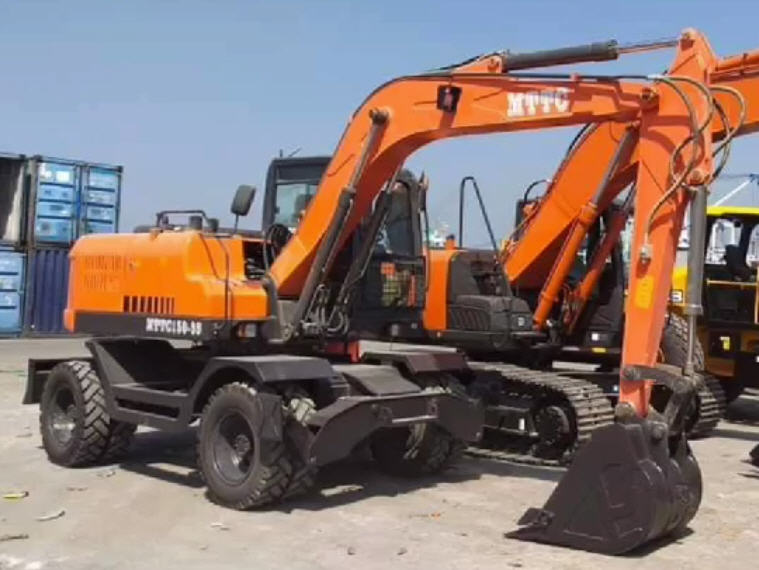

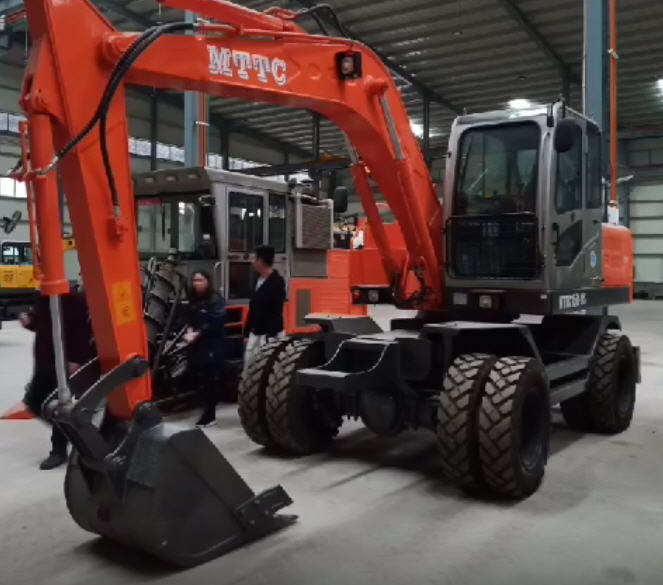

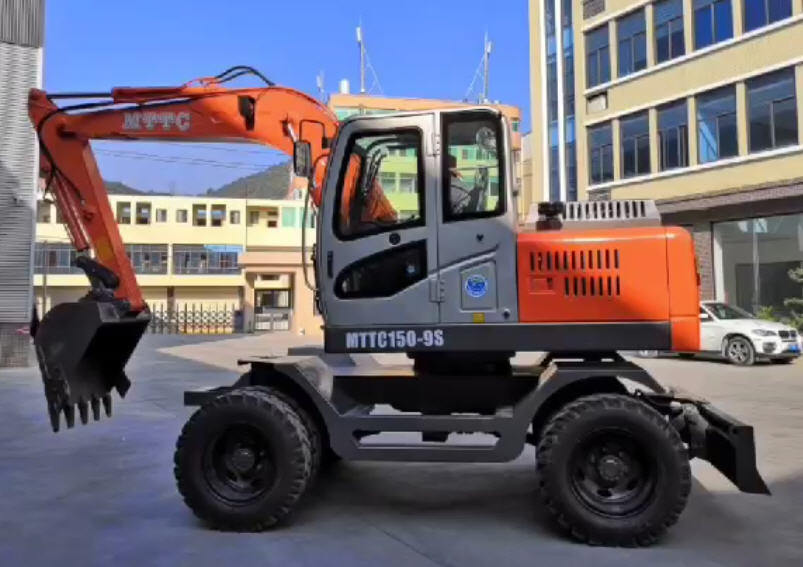

MTTC 150-9S

Description

Details

Track (Front/near): 1930/1830mm
Grade climbing ability: 58%/35°
Wheel type: 4x4 8.5x16
Hydraulic tank capacity: 120 L
Fuel tank capacity: 130 L
Fuel quantity: ≥6L/h
Full circle swing time: 5.5 s
Revolution overdrive pressure: 20 Mpa
Volume of bucket: 0.45-0.5m3
Walking speed(High speed/low speed): 25km/h
Variable piston pump: 2*36ml/r
Hydraulic system flow: 158 L/min
Ground clearance of counterweight: 1250 mm
Width of crawler: 450 mm
Machine height: 2660 mm
Back-end radius of gyration: 2000 mm
Max digging height: 7360 mm
Max digging force: 50 KN
Max digging depth: 3980 mm
Max digging reach: 7180 mm
Arm length: 1900 mm
Boom length: 3830 mm
Max hauling force: 50
System working pressure: 23.5
Rated speed: 2400 r/min
Angle of rotation: 360 °
Width of platform: 2230 mm
Max dumping height: 5200 mm
Tire model: 8.25-20
Dimensions: 6720*2380*3050mm
Machine weight: 9000
Engine model: YN38GBZ/4102 KUNMING YUNNEI 65KW/88HP W/ TURBO
Wheel base: 2600 mm
Rated power: 65 kw
Configuration: Air Conditioner
Min ground clearance: 250 mm
