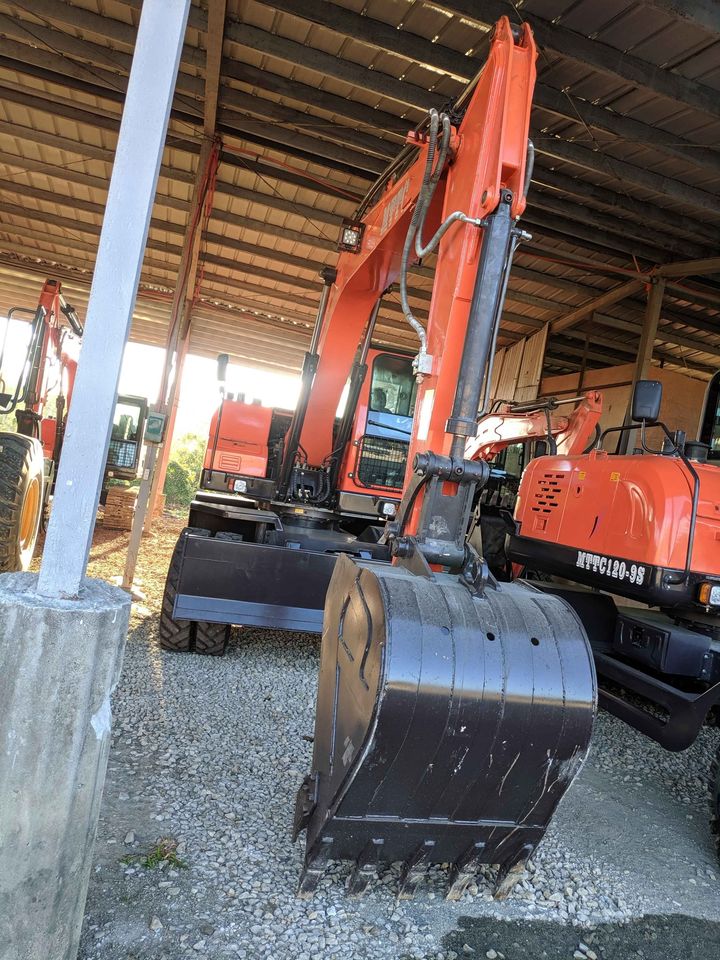

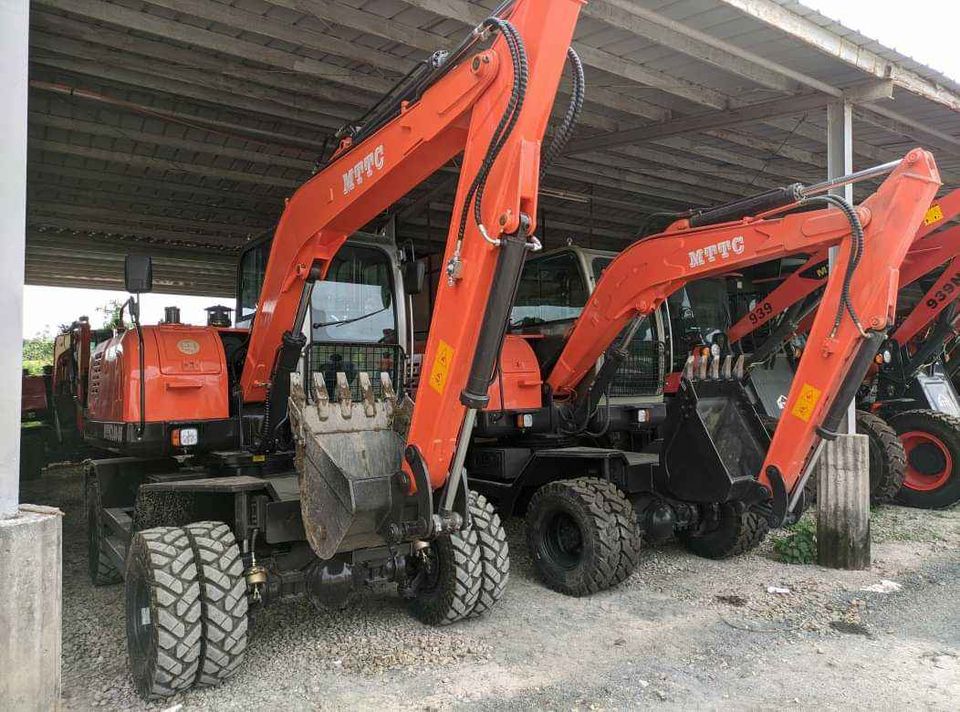

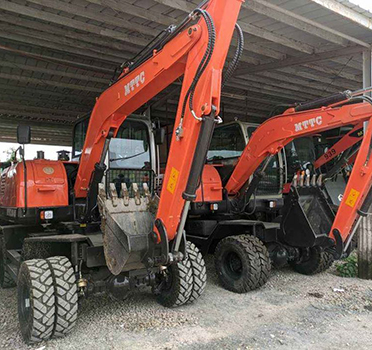

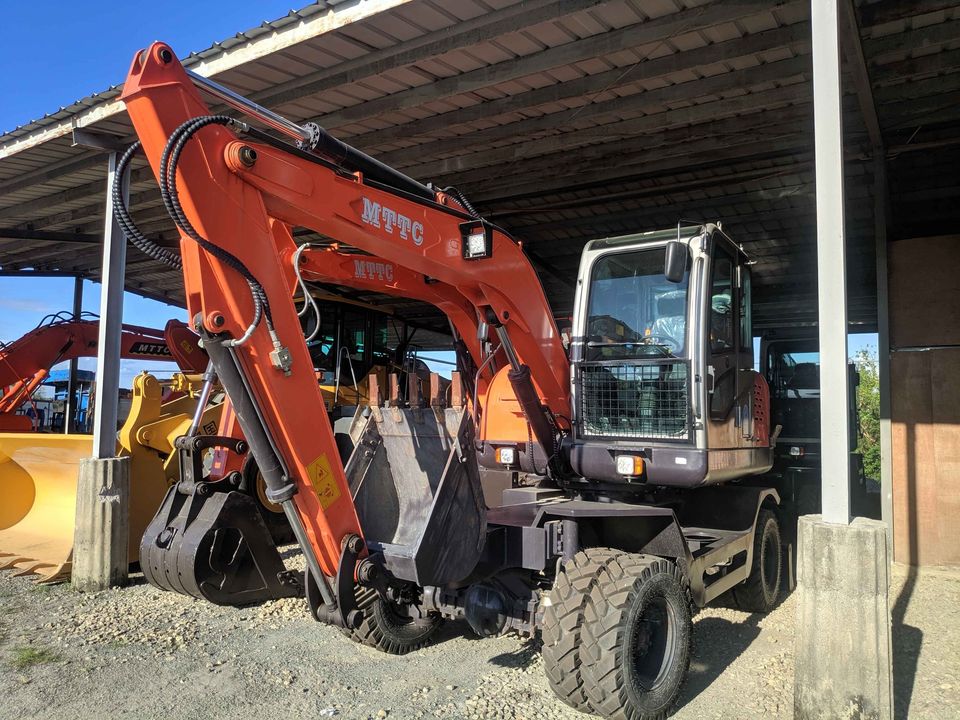

MTTC 120-9S

Description

Details

Track (Front/near): 1660mm/1580mm
Grade climbing ability: 58%/35°
Wheel type: 4x4 8.5x16
Hydraulic tank capacity: 110 L
Fuel tank capacity: 130 L
Fuel quantity: ≥4L/h
Full circle swing time: 5.5 s
Revolution overdrive pressure: 16 Mpa
Volume of bucket: 0.35m³
Walking speed(High speed/low speed): 25km/h
Variable piston pump: 63ml/r
Hydraulic system flow: 126 L/min
Ground clearance of counterweight: 1120 mm
Width of crawler: 400 mm
Machine height: 2550 mm
Distance from the arm to rotate machine: 3600 mm
Back-end radius of gyration: 1750 mm
Max digging height: 6360 mm
Max digging force: 45 KN
Max digging depth: 3830 mm
Max digging reach: 6280 mm
Arm length: 1860 mm
Boom length: 3475 mm
Max hauling force: 60
System working pressure: 21Mpa
Rated speed: 2200 r/min
Angle of rotation: 360 °
Width of platform: 2000 mm
Max dumping height: 4650 mm
Tire model: 8.25-16
Dimensions: 5700*2100*2970mm
Machine weight: 6300
Engine model: YN36GB2 KUMMING YUNNEI 50KW/68HP W/ TURBO
Wheel base: 2600 mm
Rated power: 50 kw
Configuration: Air Conditioner
Min ground clearance: 285 mm
