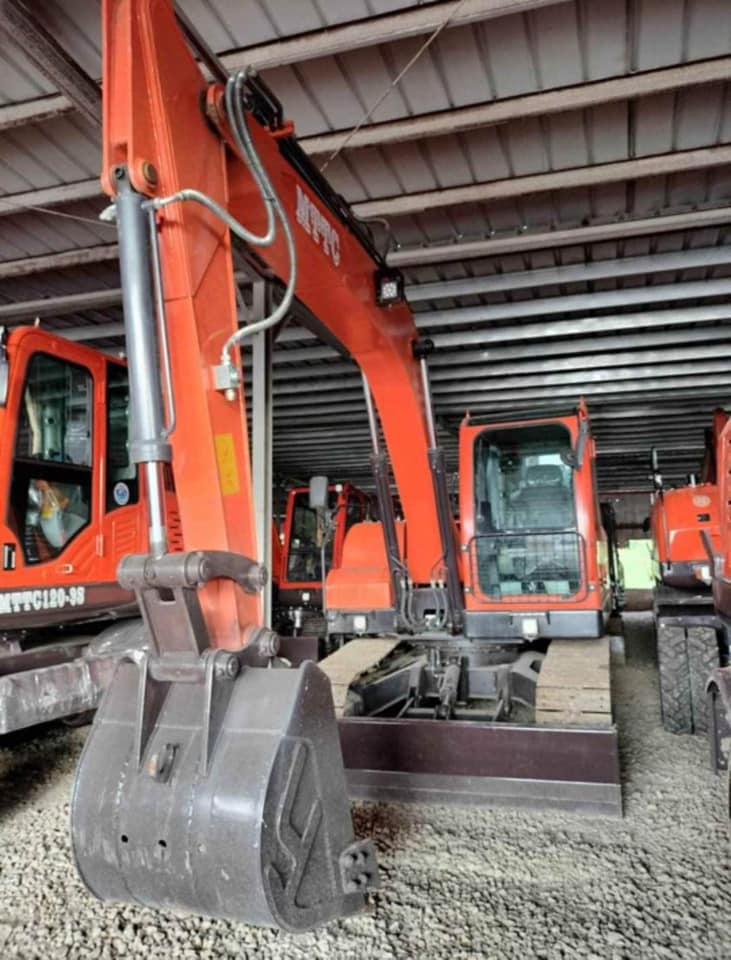

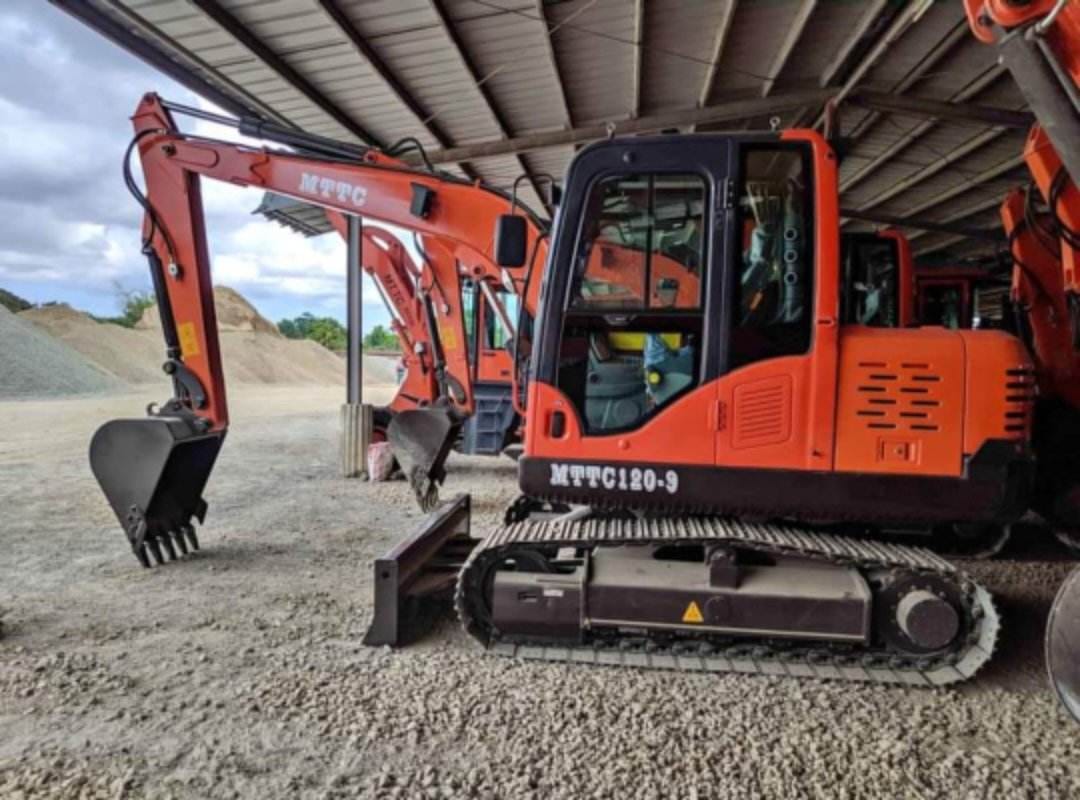

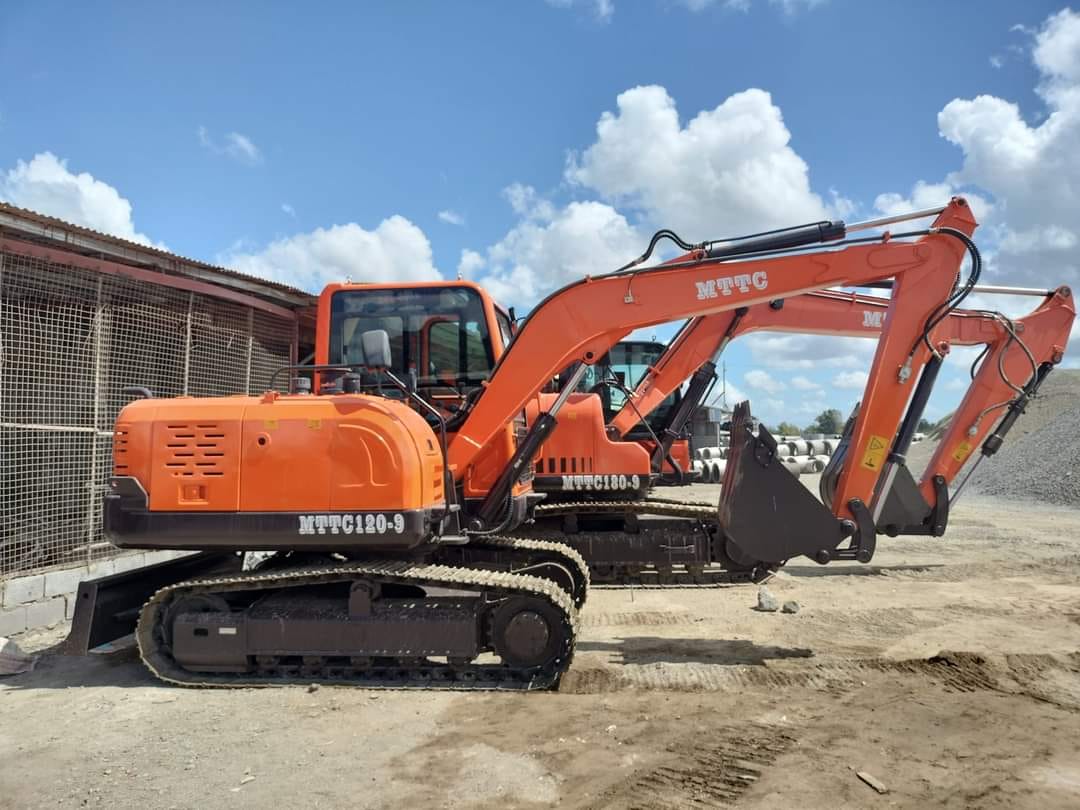

MTTC 120-9

Description

Details

Grade climbing ability: 35
Wheel type: Crewler
Hydraulic tank capacity: 110 L
Fuel tank capacity: 130 L
Fuel quantity: ≥4L/h
Full circle swing time: 5.5 s
Revolution overdrive pressure: 16 Mpa
Volume of bucket: 0.3-0.35m³
Walking speed(High speed/low speed): 4.5/2.5km/h
Variable piston pump: 2*25ml/r
Hydraulic system flow: 110 L/min
Ground clearance of counterweight: 810 mm
Width of crawler: 400 mm
Machine height: 2550 mm
Distance from the arm to rotate machine: 3600 mm
Back-end radius of gyration: 1700 mm
Max digging height: 6380 mm
Max digging force: 45 KN
Max digging depth: 4200 mm
Max digging reach: 6538 mm
Arm length: 1860 mm
Boom length: 3475 mm
Max hauling force: 45
Rated speed: 2200 r/min
Angle of rotation: 360 °
Width of platform: 2000 mm
Max dumping height: 4514 mm
Track gauge: 1570 mm
Dimensions: 5200*2100*2550mm
Machine weight: 6000
Engine model: ZHEJING XINCHAI 48KW/65HP W/ TURBO
Wheel base: 2060 mm
Rated power: 48 kw
Configuration: Air Conditioner
Min ground clearance: 360 mm
